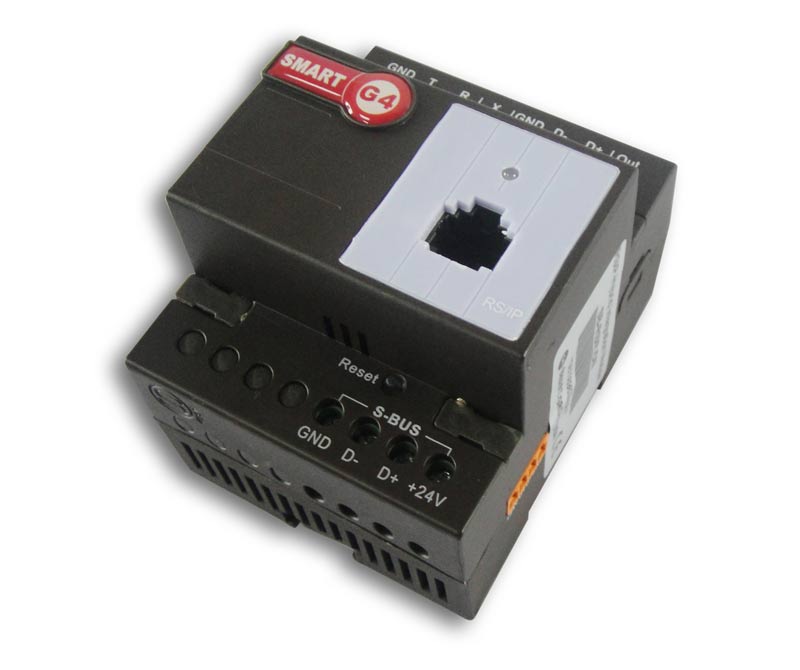

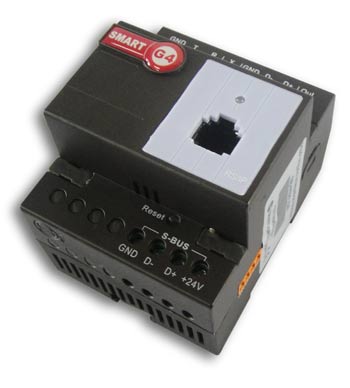

Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN
GTIN(UPC-EAN): 0610696254061




Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN - GTIN(UPC-EAN): 0610696254061

Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN

Description

DIN-Rail Mount, PC/IP Interface and 3rd Party Integration RS-232 & RS-485. This Module is multi Purpose, it can be used for programming S.BUS, and a bridge between computer Smart-BUS network, can also be used as network bridge in the big projects with thousands of devices. It is the Touch Screen to SBUS bridge. Same device is used
for 3rd Party Integration. Can send more than 1980 ASCII and/or Hexadecimal Command with 50 ASCII Character Message Length for more flexibility. 2 way communication that can receive up to 99 ASCII,HEX string commands to do up to 20 different commands for each message received Fixed ASCII S-BUS Protocol with Send Command Delay option Adjustable baud rate

**Added function: Improved String Length.

3rd Party Compatibility:

• Lighting
• DVD's
• Media
• Curtains
• Security
• Music
• Lifts
• Projector
• Access
• Fire
• Weather
• HVAC
• TV
• RFID
• W-BUS

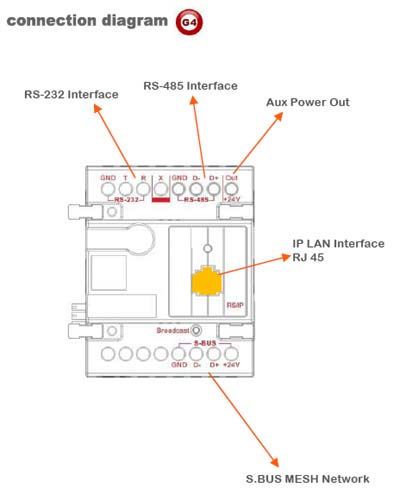

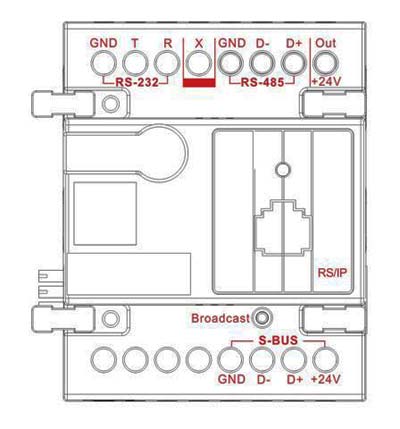

Connection Port:

Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN - GTIN(UPC-EAN): 0610696254061



TECHNICAL DATA:

IP Compatibility
Compatible with all LAN data
switch types, all WiFi routers.

Protocols
• Advanced S-BUS
• FTP/IP
• RS-232
• RS-485

RS baud rates
work in all baud rate: 2400,
4800, 9600, 14400, 19200,
38400, 57600, 115200 bps
ASCII and HEXADECIMAL

String Commands
• 50 Characters ASCII Length
• Can Send 1980 Commands
• Can receive 99 commands
• Each Rcvd. command can execute
20 functions with delay

Upgrade IO
1 x mini USB port (to connect to
special programming board)

User Controls
• LED status indicator/channel
• Diagnostic LED+ BROADCAST

Programming
• Advanced Software Configuration
& Programming

Compliance
CE Mark EMC

Operation Protection
• BUS Rv. Polarity Protection
• BUS Short Circuit Protection

Added IP functions
• Soft reset function that reset
IP to default
• Remote management
• Intelligent data interchange to
minimize the data flux

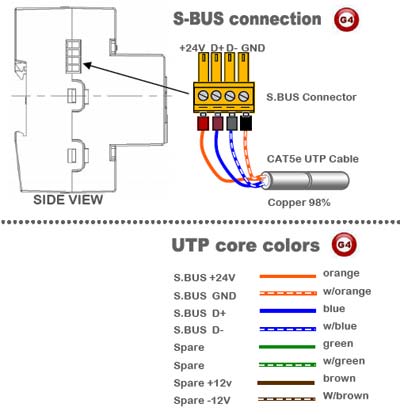

SBUS DC Supply
24VDC with flexible tolerance
between 8-32VDC. Flexible
ability to add power supply as
to be needed any where
Power consumption: 15mA

Installation
• 35mm DIN-Rail Mount Ready
• Wall Mount Ready (4P)

Operating Environment
0º to 45ºC ambient temperature
20% to 93% RH

Enclosure & Size
Polycarbonate, DIN-rail (4 Unit)

Dimensions & Weight
W 91mm x L 73mm x H 75mm
Packed weight 0.22 kg

Q: How To Upgrade RSIP?
A: Watch http://www.youtube.com/watch?v=Pc4O6mvyjcs&feature=plcp

Q: How to install 3 RSIP232 units in a building and control each individually? And is there a way it can receive the correct feedback from each unit individually without all of them responding at the same time/port address?
A: Here is the connection diagram with the configuration settings of each devices:


Installation Diagram & configuration of 3 RSIP

Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN - GTIN(UPC-EAN): 0610696254061


Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN - GTIN(UPC-EAN): 0610696254061

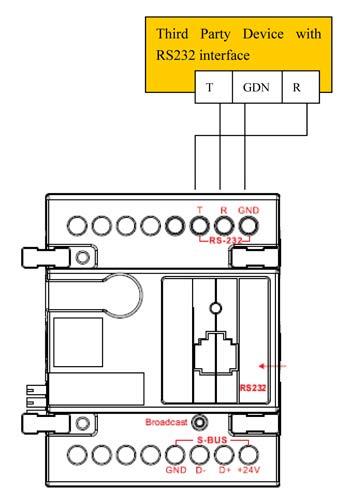

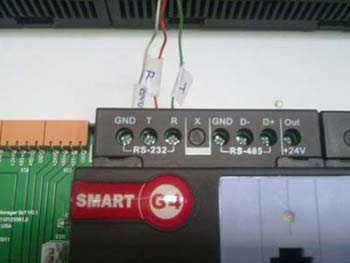

The Serial Port connection for RSIP module

GND->GND
T-> R
R->T
Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN - GTIN(UPC-EAN): 0610696254061
Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN - GTIN(UPC-EAN): 0610696254061

Applications

  • Apartment, Villa, Offices, Restaurant, Hotels or factories
